Fantom Xr EditorFirst I found the Windows 8 version here: http://roland.com/support/article/?q=do .. d=62483063

Fantom-X Editor Version 1.53 (MAC) Fantom-X Editor/Librarian for Fantom-XA and Fantom-X6,7,8,XR running version 1. Version 1.53 adds compatibility with the SRX-12 Expansion Card. Fantom-X Editor Version 2.10 (Mac) This is the new Editor/Librarian software for Version 2 of the Fantom. Fantom-X Editor/Librarian for Fantom-XA and Fantom-X6,7,8,XR running version 1. Version 1.53 of the editor adds compatibility for the SRX-12 Expansion Board. Fantom-X Editor Version 1.53 (MAC) Fantom-X Editor/Librarian for Fantom-XA and Fantom-X6,7,8,XR running version 1. Version 1.53 adds compatibility with the SRX-12 Expansion Card. Like the Fantom-X keyboards, the Fantom-XR module is based on Roland's powerful new sound generator chip. This chip delivers maximum audio processing performance at a great price - including an expressive stereo 4-tone synthesis engine with 128-voice polyphony. I'm a lucky owner of a Fantom XR module. I was really disappointed when I discovered that latest OSX sistems were no more supported by Roland Fantom X Editor. The rack module display is very small and there is no way to manage all the tons of controls, this unit has, from such a poor number of knobs.


I tried to install it but it did not work.
Next I ran through this process that tells Windows that it can install unsigned drivers.
http://en.code-bude.net/2015/08/19/how- .. indows-10/Mac
In my Fantom X driver archive I found and edited the RDIF1045.inf file
Change [Roland.NTamd64.6.2] so it looks like this:
[Roland.NTamd64.6.2]

Roland Fantom Xr Editor

;; Windows10
%RDID0045DeviceDesc%=RDID0045Install, USBVID_0582&PID_006D ; FANTOM-X
Fantom xr editor(essentially, I just changed the Windows8 to Windows10 and left the rest of the file alone)
Don't run the installer again..instead do it manually......
Next I plugged in the Fantom to the USB port, opened the Device Manager, and manually installed the driver by pointing it to the directory holding all the Fantom X driver files.
1. Plug in your Fantom via USB.
2. Right click the start button and choose device manager.
3. Locate your Fantom X, it should show up in the unidentified ? section of devices.
Editor4. Right click it and choose update driver.

Roland Fantom Xr Editor Mac

5. Browse your disk(s) and find the directory holding your Fantom X drivers.
Hopefully it will find everything it needs and install itself for you.
So far it seems to be working for me, at least the MIDI over USB part.as I haven't tried accessing the memory or flash card yet.
I'll come back and follow up with more posts once I get a chance to try the memory/flash mounting side of things.

Roland Fantom Xr Editor

Fantom-XR

Updates & Drivers

  • Fantom-X Driver Version 1.0.0 for Windows 8

    IMPORTANT NOTICE: When the Windows SmartScreen is displayed upon installing the driver, please perform the following procedure:
    1. Click [ More info ]
    2. Click [ Run anyway ]
    * Skip Step 1 If your PC is not connected to the internet.

  • Fantom-X Driver Version 1.0.0 for Windows 7 32-bit Edition

    This is the Fantom-X driver for Microsoft(R) Windows 7.

  • Fantom-X Driver Version 1.0.0 for Windows 7 64-bit Edition

    This is the Fantom-X driver for Microsoft(R) Windows 7 64-bit Edition.

  • Fantom-X Driver Version 1.0.0 for Windows Vista 32-bit Edition

    For Product(s): Fantom-X6 / Fantom-X6 Audio Track Expansion / Fantom-X7 / Fantom-X7 Audio Track Expansion / Fantom-X8 / Fantom-X8 Audio Track Expansion / Fantom-XR / Fantom-XR Sample Tools Expansion

  • Fantom-X Driver Version 1.0.0 for Windows Vista 64-bit Edition

    This is the Fantom-X6/X7/X8 driver for Microsoft(R) Windows(R) Vista(TM) 64-bit Operating Systems.

  • Fantom-X6/X7/X8/XR Driver Version 1.0.0 for OS X 10.8

    Fantom-X6/X7/X8 Users Note: This driver supports only a FANTOM-X6/X7/X8 that has an installed Fantom-X Audio Track Expansion.

    Fantom-XR Users Note: This driver supports only a FANTOM-XR that has an installed Fantom-XR Sample Tools Expansion.

  • Fantom-X Series USB Driver v1.0 for Mac OS 10.6

    This is the USB driver for Mac OS X 10.6 (Snow Leopard). Twinmotion download size.

  • Fantom-X Series USB Driver v1.20 for Mac OS 10.5 and Earlier

    This is the USB driver for Mac OS X 10.5 (Leopard) and earlier.

  • Fantom-XR System Update Version 1.03

    This is the latest version 1 update for the Fantom-XR. Please refer to the readme.pdf for the update procedure.
    This update resolves USB Storage related issues.
    NOTE: The update files that you download and save to your computer from the link above are enclosed in a compressed zip file. These files will need to be extracted from the zip file before you can burn them to a CD. You can do this by using the WinZip application on your PC running Windows XP, or by using Stuffit Expander on your Macintosh (needed for OS 10.2.x or below). If you're using Mac OS X 10.3.x or above, then you will not need Stuffit Expander.
    When you double-click on the downloaded file that you saved to your computer, WinZip or Stuffit Expander should startup automatically. If you do not have WinZip (PC) or Stuffit Expander (Mac) installed, then you must download it, install it, and extract/unzip the update files folder before you can complete the update procedure.
    You can get WinZip from the following link:http://winzip.com
    You can get Stuffit Expander from the following link:http://www.stuffit.com/mac/expander/

  • Fantom-XR System Update Version 2.02

    This is the latest version 2 update for the Fantom-XR. Your Fantom-XR MUST be running Version 2.00 in order to use this update. Please refer to the readme.pdf for the update procedure.
    This update resolves USB Storage related issues.
    NOTE: The update files that you download and save to your computer from the link above are enclosed in a compressed zip file. These files will need to be extracted from the zip file before you can burn them to a CD. You can do this by using the WinZip application on your PC running Windows XP, or by using Stuffit Expander on your Macintosh (needed for OS 10.2.x or below). If you're using Mac OS X 10.3.x or above, then you will not need Stuffit Expander.
    When you double-click on the downloaded file that you saved to your computer, WinZip or Stuffit Expander should startup automatically. If you do not have WinZip (PC) or Stuffit Expander (Mac) installed, then you must download it, install it, and extract/unzip the update files folder before you can complete the update procedure.
    You can get WinZip from the following link:http://winzip.com
    You can get Stuffit Expander from the following link:http://www.stuffit.com/mac/expander/

  • Fantom-X USB Drivers (MAC Classic)

    Use this driver for Macs running OS 8.x and 9.x.

  • Fantom-X Editor Version 1.53 (PC)

    Fantom-X Editor/Librarian for Fantom-XA and Fantom-X6,7,8,XR running version 1.
    Version 1.53 of the editor adds compatibility for the SRX-12 Expansion Board.

  • Fantom-X Editor Version 1.53 (MAC)

    Fantom-X Editor/Librarian for Fantom-XA and Fantom-X6,7,8,XR running version 1.
    Version 1.53 adds compatibility with the SRX-12 Expansion Card.

  • Fantom-X Editor Version 2.10 (PC)

    This is the new Editor/Librarian software for Version 2 of the Fantom. The also contains the sample convert software for use with S-700 series sample libraries.
    NOTE: Only use this software with Fantom-X6,7,8, and XR units running Version 2.
    Version 2.10 of the editor adds compatibility with the SRX-12 Expansion Board.

  • Fantom-X Editor Version 2.10 (Mac)

    This is the new Editor/Librarian software for Version 2 of the Fantom. The also contains the sample convert software for use with S-700 series sample libraries.
    NOTE: Only use this software with Fantom-X6,7,8, and XR units running Version 2.
    This version of the editor adds support for the SRX-12 Expansion Board.

  • Fantom-X Cakewalk/Sonar INS File (PC)

    This is the instrument definition file for Cakewalk and Sonar users. Please refer to the 'insinstallreadme.pdf' for step on how to install an INS file.

  • Fantom-X Cubase Patch Script (MAC)

    This is the Fantom-X patch listing for Cubase SX. Please refer to the 'Installing Cubase Patch Scripts' document for steps on installing the script.

  • Fantom-X Cubase Patch Script (PC)

    This is the Fantom-X patch listing for Cubase SX. Please refer to the 'Installing Cubase Patch Scripts' document for steps on installing the script.

  • XV-5080 Patches for Fantom-X (PC)

    Download the original XV-5080 Patches that have been ported over to the Fantom-X. Refer to the 'Fantom-X_XV_Readmeen.txt' document for directions on using this file.

  • XV-5080 Patches for Fantom-X (MAC)

    Download the original XV-5080 Patches that have been ported over to the Fantom-X. Refer to the 'Fantom-X_XV_Readmeen.txt' document for directions on using this file.

  • SRX-03 Refill Patches for Fantom-X/S

    Originally, this is intended for Fantom-S Series, however it can be convert loaded to Fantom-X Series by means of Fantom-X Editor software. Please refer to 'readme' documents for further details.
    For Product(s): Fantom-X6 / Fantom-X7 / Fantom-X8 / Fantom-XR / Fantom-Xa / SRX-03 / Fantom-S / Fantom-S88

  • SRX-04 Refill Patches for Fantom-X/S

    Originally, this is intended for Fantom-S Series, however it can be convert loaded to Fantom-X Series by means of Fantom-X Editor software. Please refer to 'readme' documents for further details.
    For Product(s): Fantom-X6 / Fantom-X7 / Fantom-X8 / Fantom-XR / Fantom-Xa / SRX-04 / Fantom-S / Fantom-S88

  • Clean-All USB Driver Utility

    This utility clears out all Roland USB Windows drivers and should be used if you are having difficulty installing your USB driver.
    Note: You will have to reinstall the drivers for any other Roland device that is using a USB connection for Audio or MIDI.

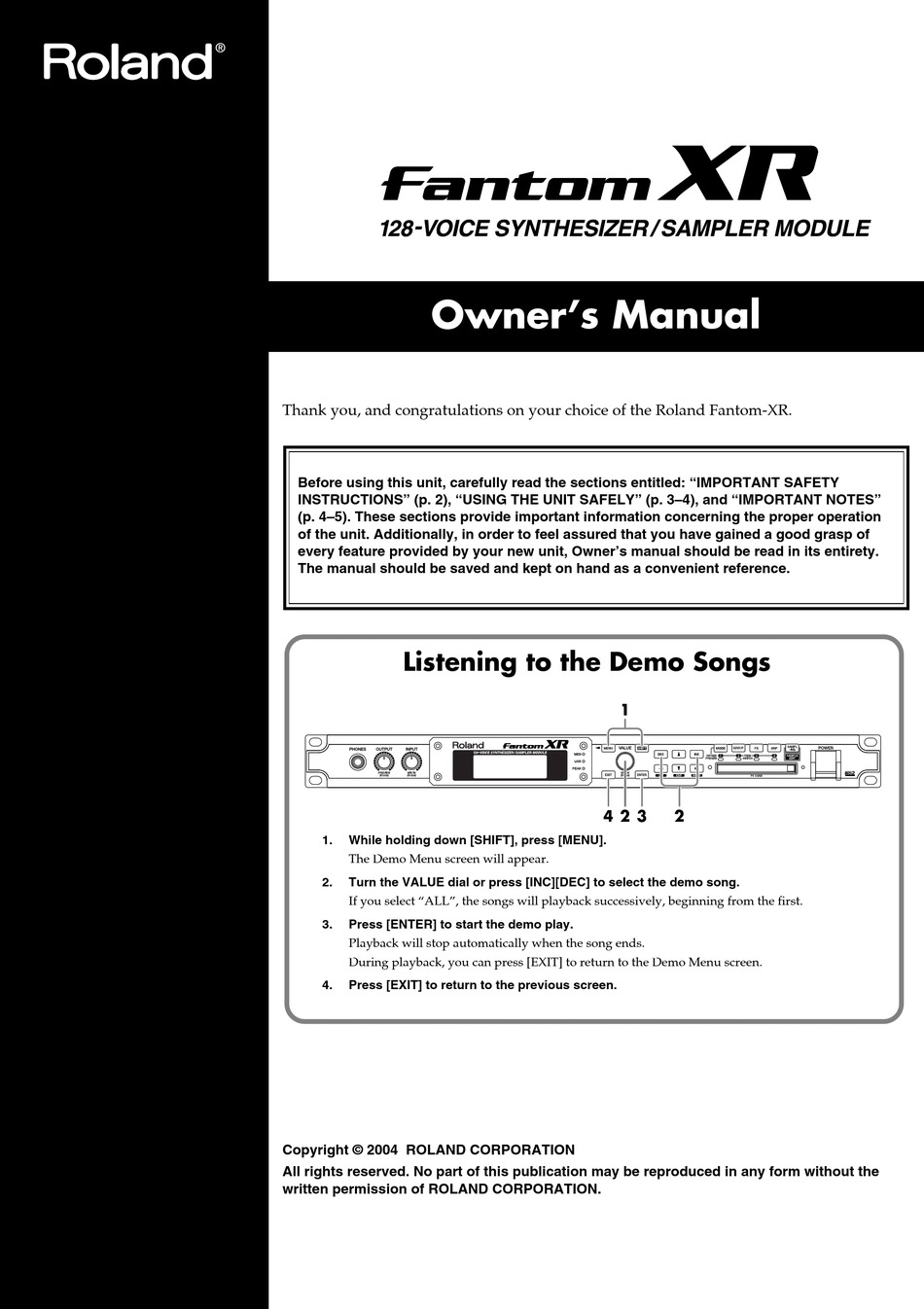

Owner's Manuals

Fantom Xr Editor Software

Support Documents

Fantom Xr Editor

  • Sampler Compatibility Guide

    Check this PDF document for compatible drives and RAM.

  • InFocus 02: Roland’s Librarian Software

    If you’re the kind of person who digs into your Roland/BOSS gear, odds are you go way beyond factory patches and settings. It’s for users like you that we include a computer-based Librarian application for backing up and organizing your data. This booklet explains the Roland/BOSS Librarian.
